Modular Architecture
Scalable configurations for changing project requirements.
The portfolio covers a 125 kW / 261 kWh all-in-one C&I system and a 5,015 kWh containerised utility-scale battery system.
Scalable configurations for changing project requirements.
Designed for commercial and utility energy-management duties.
LFP chemistry, monitoring and multi-layer protection functions.
Communication options for compatible EMS, HMI and remote monitoring.

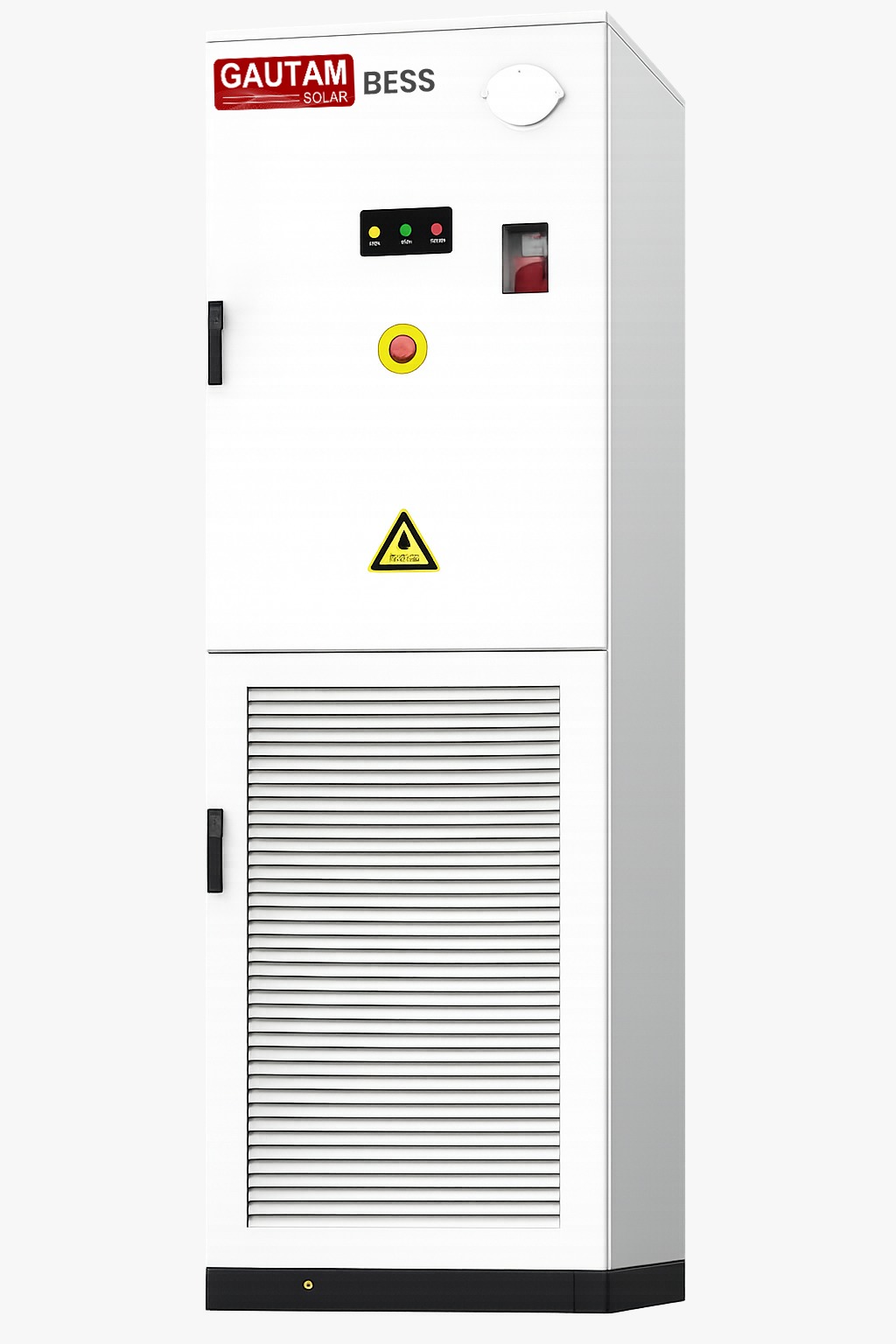

Integrated battery storage and power-conversion platform for peak shaving, load shifting, demand management, backup power and solar self-consumption.

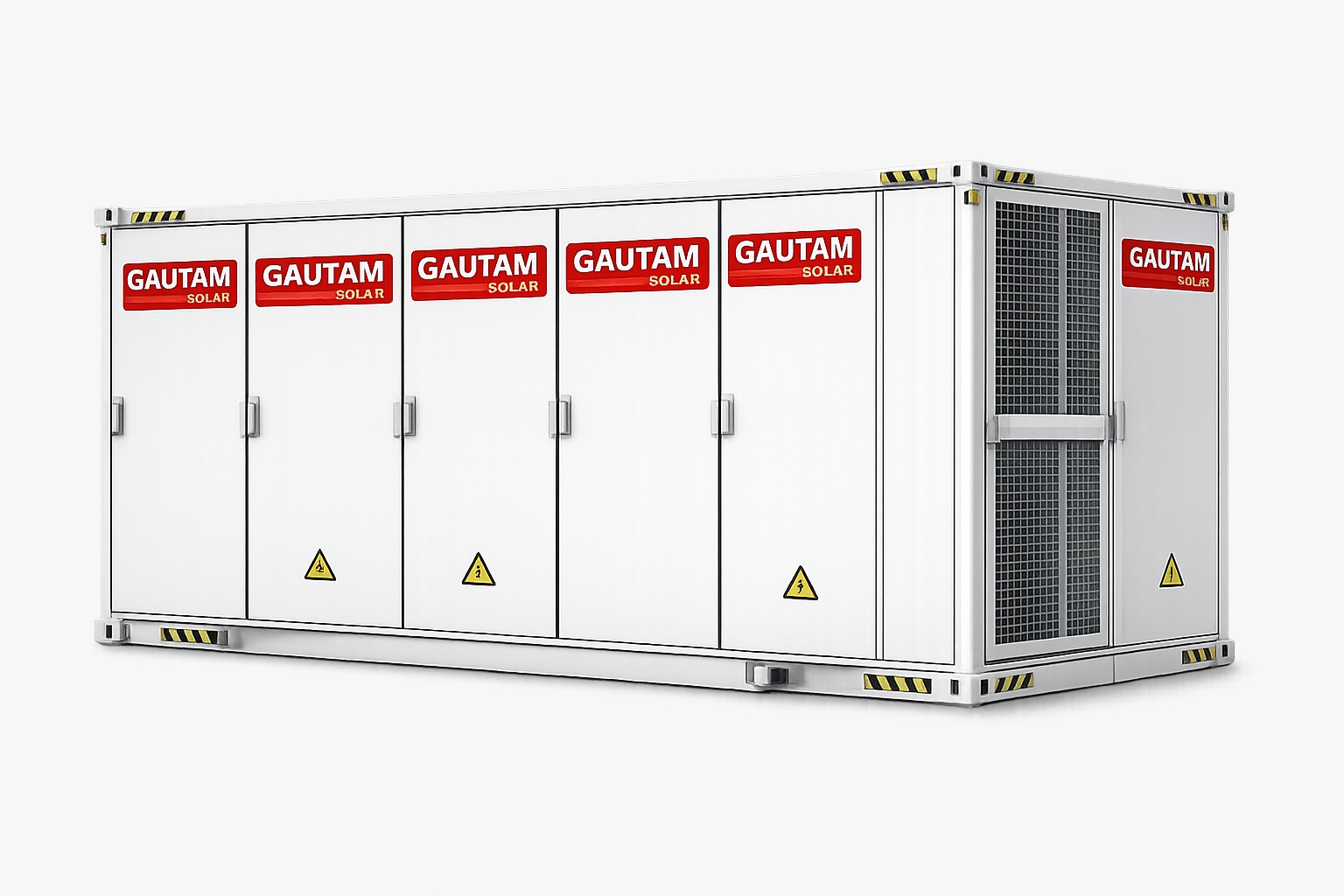

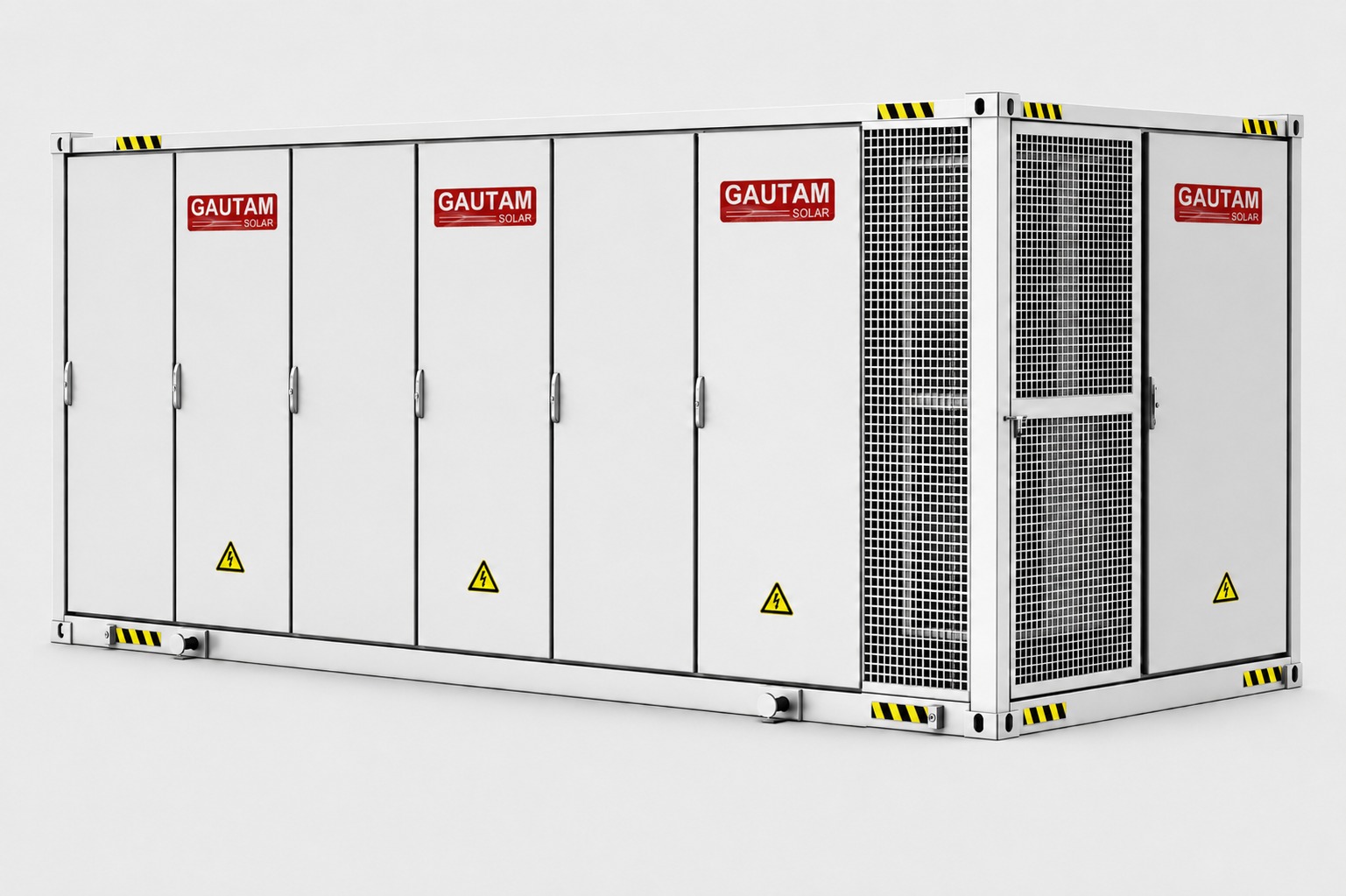

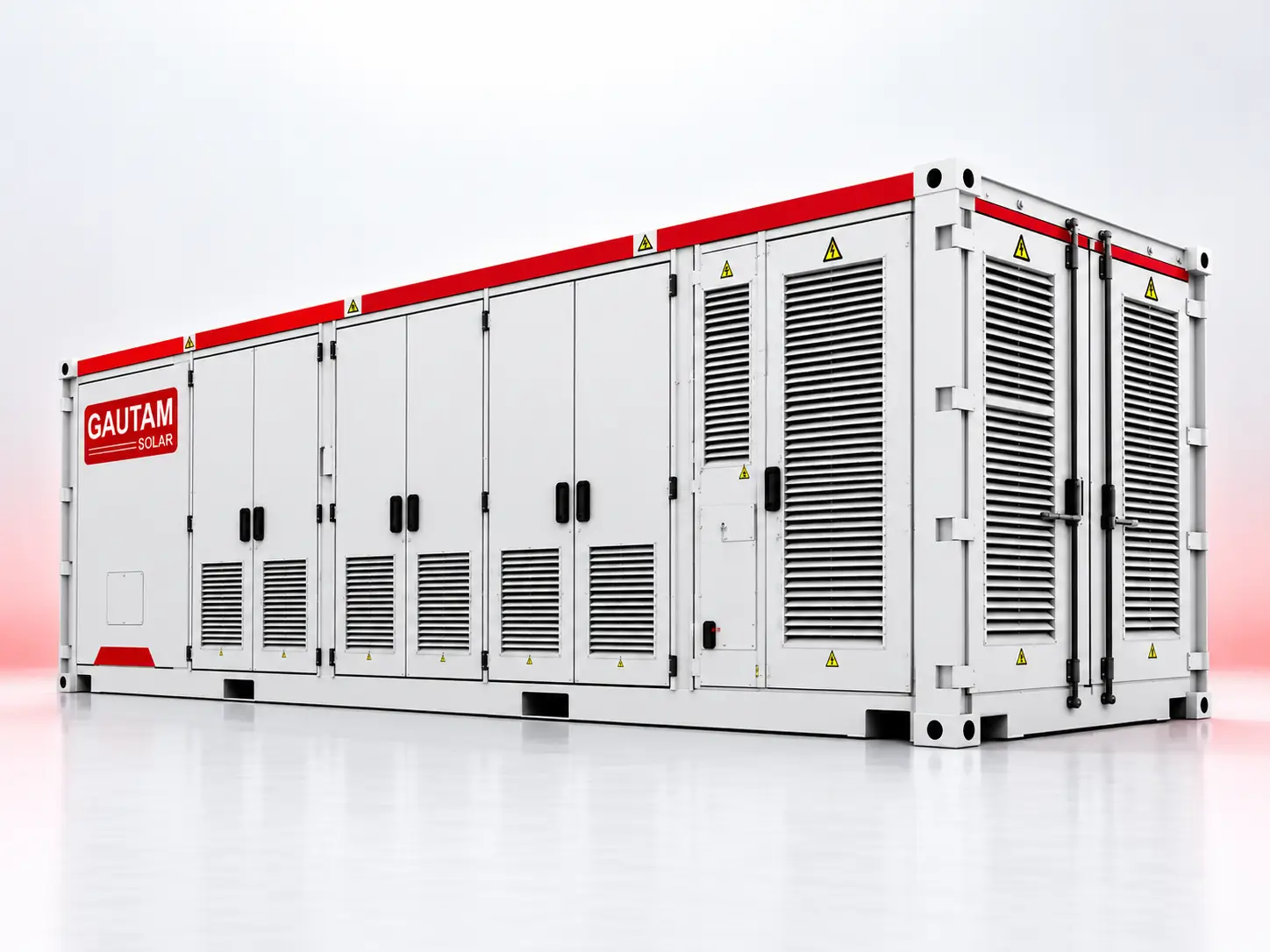

Containerised LFP storage system for large-scale solar, utility and industrial energy-storage projects.
Discharge stored energy during periods of high site demand.
Move energy use from high-cost periods to lower-cost periods.
Operate according to applicable tariff windows.
Reduce sudden demand peaks and improve load control.
Support selected loads within a properly engineered backup architecture.
Store surplus solar energy for later use.
| Parameter | Specification |
|---|---|
| DC Side Parameters | |
| Battery type | LFP |
| Cell cycle life | 70% EOL; 11,000 cycles at 0.5P, 25°C |
| Cell capacity | 3.2 V / 314 Ah |
| Battery configuration | 1P260S |
| Number of packs | 5 |
| Nominal energy | 261 kWh |
| Nominal voltage | 832 V |
| Operating voltage | 715–923 V |
| Communication interface | CAN / RS485 / Ethernet |
| AC Side Parameters | |
| Rated voltage | AC 380 V / 400 V |
| Rated grid frequency | 50 / 60 Hz |
| Rated power | 125 kW |
| Maximum power | 137.5 kVA |
| Power factor | −1 to +1, leading or lagging (adjustable) |
| Rated AC output current | 180 A |
| Maximum AC output current | 198 A |
| Grid-connected voltage range | 340–460 V |
| Electrical connection mode | 3P + PE + N |
| System Parameters | |
| Operating temperature | −30°C to +55°C |
| Relative humidity | 0–95% (non-condensing) |
| Operating altitude | 4,000 m (>2,000 m: derating applies) |
| Cooling | Internal-cycle liquid cooling |
| Firefighting | Aerosol |
| IP rating | IP55 |
| Antiseptic rank | C5 |
| Dimensions (W × D × H) | 1,000 × 1,350 × 2,380 mm |
| Weight | <2.7 t |
| Communication interface | RS485 / Ethernet / Dry Contact |
Review load, tariff, generation and operating objectives.
Define power, energy capacity and required duration.
Develop architecture, controls and safety design.
Coordinate supply, installation and site interfaces.
Test functionality and configure monitoring.
